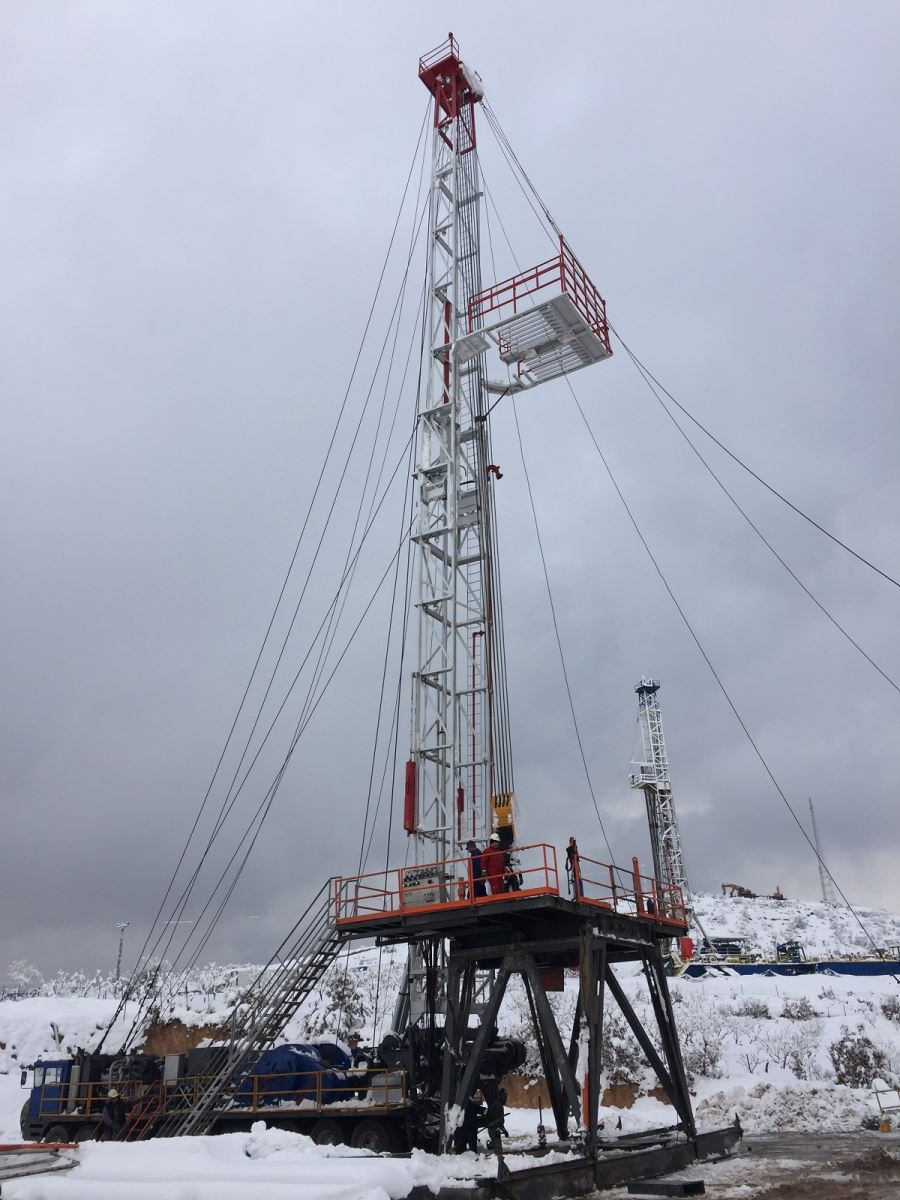

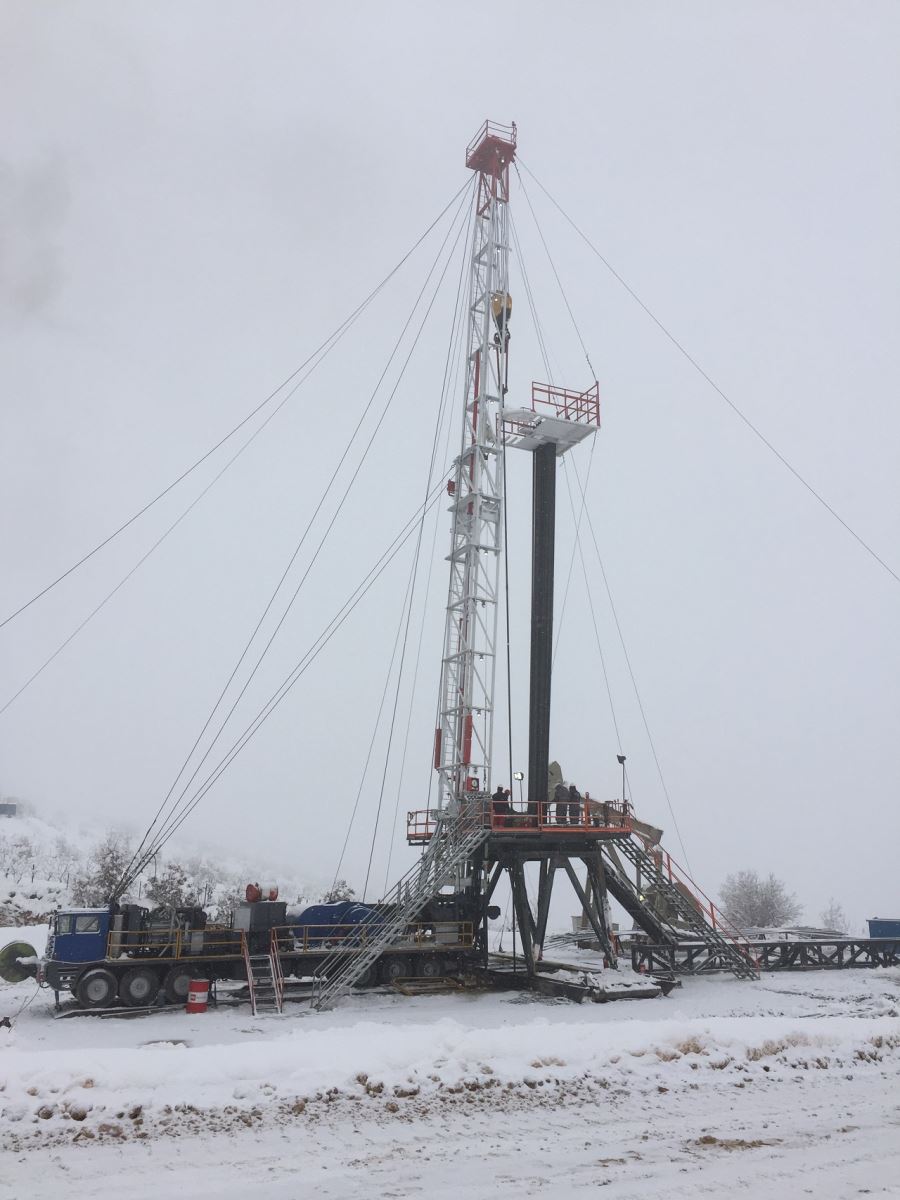

AME-102 WO/DRILLING RIG







MODEL:    SKYTOP BREWSTER RR 750



Depth Range:

2500 m. with 5’’ DR, 3200 m. with 3-1/2’’ DR



Mast:

Skytop Brewster 112-300XF, 34 m. (136 ft)



Substructure: Heigth: 5.18 m (17 ft)

Clearence to the beams: 4.1 m. (13.6 ft)



Crown Block:

Skytop Brewster, Grooved 1’’, Capacity 136 t.





Travelling Block & Hook:

BJ Unimatic, Capacity 150t.



Engine:

650 HP, powered two (2) DD 465 HP 8V92TA diesel engine, torque converted two (2) Allison CLT 5860 transmission with built-in converter – six gears forward, one reverse, full torque shifting.



Drawworks:

Parmac SR-22, 22» hydromantic brake and circulating water brakes.



Sandreel:

All mounted on the carrier Skytop Brewster 618, four (4) hydraulic leveling jacks.
